Specifications
| Function | Measuring range | Best accuracy | Resolultion |
|---|---|---|---|
| MΩ | 15/25/50V 9.99M/21.0MΩ 100/125/250/500V 9.99M/99.9M/110MΩ |
±(2%+5) | 0.1MΩ |

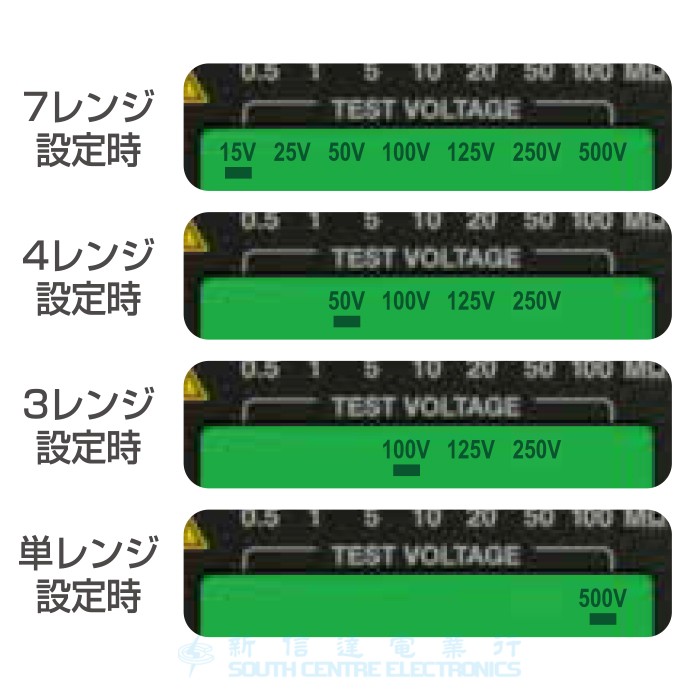

| Rated voltage | 15/25/50/100/125/250/500V | ||
| ACV/DCV | 600V（Automatic measurement for AC/DC) | ±(1.6%+7) | 0.1V |
| Ω | 999.9/99.99k/999.9kΩ | ±(1.5%+7) | 0.1Ω |
| Insulation resistance (Level meter) | 15/25/50V 5 Levels (LED light up/blinking) 100/125/250/500V 7 Levels (LED light up/blinking) |
||
| Continuity | ≦ approx.30Ω: Beep sounds | ||
| Rated current | 1.0～1.2mA |
| Battery | LR03(AAA alkaline battery)×4 |
| Size/Mass | H139×W91×D29mm/Appox. 230g |
| Earth lead（Black) | Length Approx. 1.8m |
| Safety standard | IEC61010 CAT.Ⅲ 300V CAT.Ⅱ 600V |
