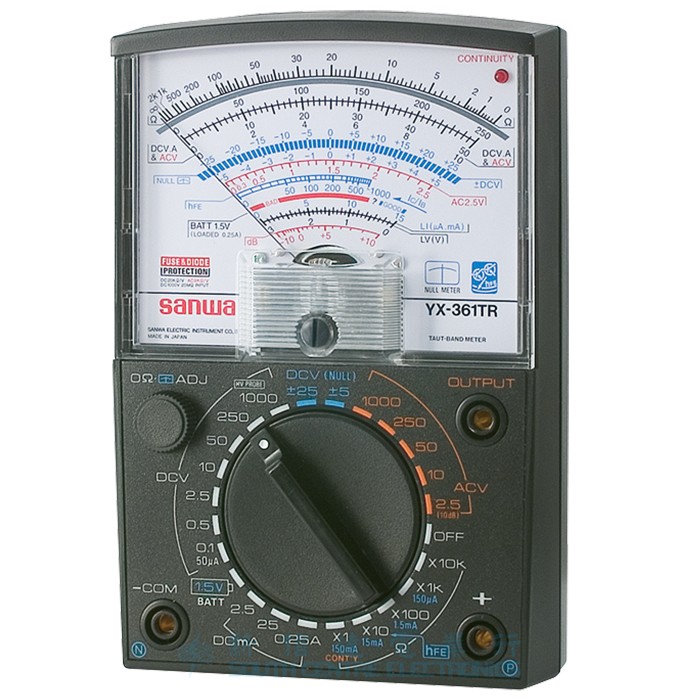

日本SANWA針式萬用表YX-361TR

Employing 24-contact switch and plus alpha function enable you to enjoy a total of 33 functions
Zero center meter for ± DCV measurement
With LED for continuity check
With OUTPUT measurement terminal (series capacitor inserted)
Battery check
DC current gain (hFE) of transistor can be measured by using separately available hFE connector

貨號: 8010034 分類: 電工儀器儀錶標籤: 日本Sanwa

Function	Measuring range	Tolerance
DCV	0.1/0.5/2.5/10/50/250/1000V（20KΩ/V)	±2.5% of full scale
±DCV	±5/25V（40kΩ/V)	±5% of full scale
ACV	2.5/10/50/250/1000V（9kΩ/V)	±3% of full scale (2.5/10V:±4% of full scale)
DCA	50μ/2.5m/25m/0.25A	±2.5% of full scale
Resistance	2k/20k/200k/2M/20MΩ	±3% of arc
Low-frequency output	-10～+62dB	±3% of full scale (2.5/10V:±4% of full scale)
hFE	hFE： 0～1000	±3% of arc
Continuity	≦ approx.10Ω: LED lights. Open circuit voltage: approx. 3V
Battery check	1.5V

Bandwidth	40Hz～20kHz(Less than AC50V : ±3% of full scale)
Battery	R6P(AA battery)1.5Vx2, 6F22(9V manganese battery)x1
Fuse	F0301 Φ5x20mm 0.5A/250V 300A Glass fuse
Size/Mass	H150×W100×D37mm/Approx. 290g
