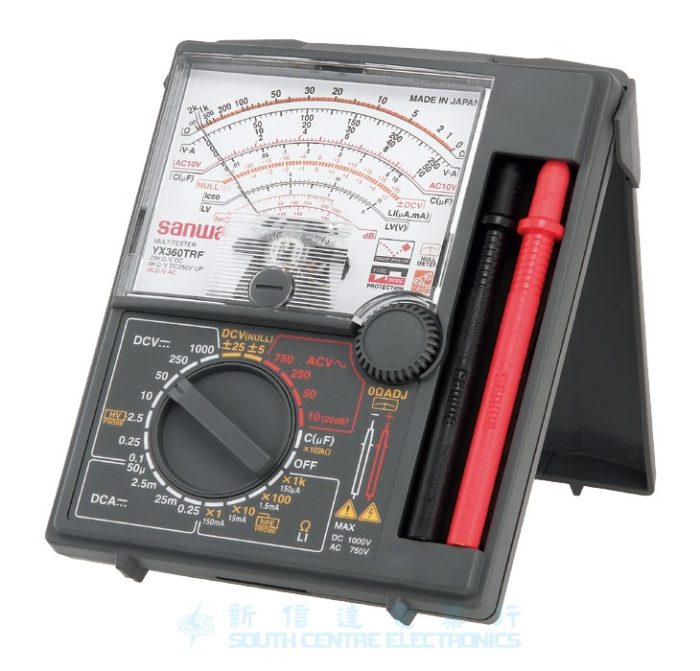

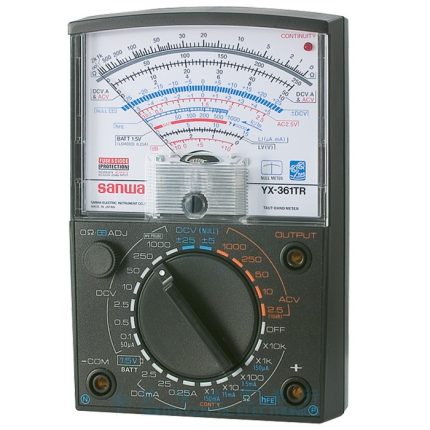

Specifications
| Function | Measuring range | Tolerance |
|---|---|---|
| DCV | 0.1（20kΩ/V) 0.25/2.5/10/50（20kΩ/V)/250/1000V（9kΩ/V) |
±5% of full scale ±3% of full scale |
| DCV (NULL) | ±5/25V（40kΩ/V) | ±5% of full scale |
| ACV | 10/50/250/750（9kΩ/V) | ±4% of full scale |
| DCA | 50μ/2.5m/25m/0.25A | *1 ±3% of full scale |
| Resistance | 2k/20k/200k/2MΩ (x1/x10/x100/x1k) 200MΩ (x100k) |
±3% of arc ±5% of arc |
| Capacitance | 10μF | Approximate value |
| dB | -10dB～+22dB (for 10VAC) ～+62dB | Approximate value |
| Load current (LI) | 0-150m/15m/1.5m/150μ/1.5μA | Approximate value |
| DC high voltage | DC25kV (optional probe “HV-10T” is necessary) | – |
| hFE | 1000 at x10 range (optional probe “HFE-6T” is necessary) | – |
| Battery | R6 (IEC) or UM-3 (1.5V)x2 |
| Fuse | Φ5.2x20mm (250V/0.5A) |
| Size/Mass | H159.5×W129×D41.5mm/Approx. 320g |
※The value in ( ）at DCV and ACV is input resistance
*1 Not including the resistance of fuse.
