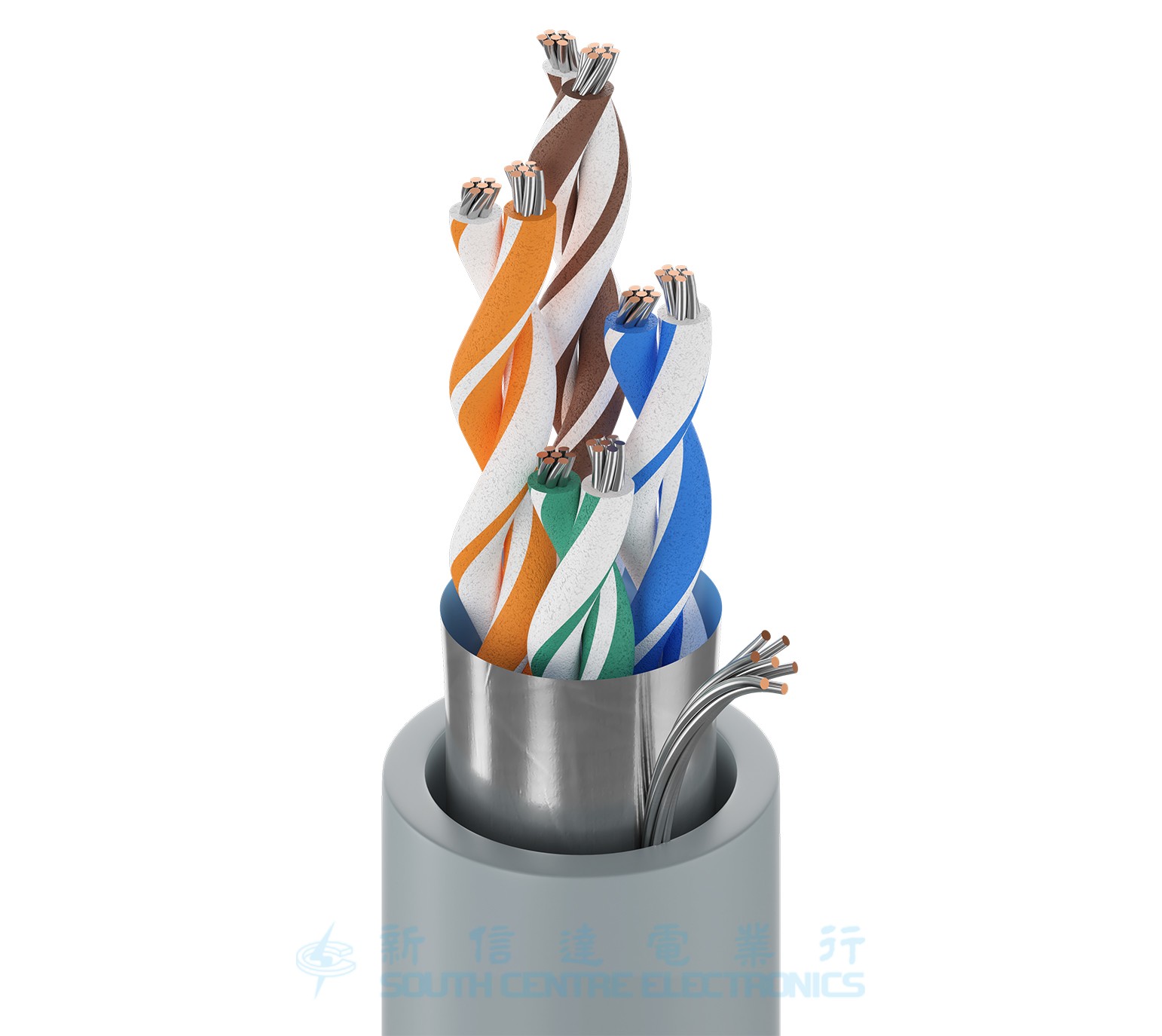

BELDEN 1421A RS-232/422通訊線纜

RS232/422 Low Cap, #24-4pr, FPE, O/A Foil, PVC Jkt, CM, 100Ω

允許無庫存下單

Suitable Applications	RS-232 extended distance applications; RS-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; panel wiring

Element	Number of Element	Size	Stranding	Material
Pair(s)	4	24 AWG	7×32	TC – Tinned Copper

Element	Material	Nom. Thickness	Color Code
Pair(s)	PE – Polyethylene (Foam)	0.013 in (0.33 mm)	White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7×32) TC

Material	Nom. Thickness	Nom. Diameter
PVC – Polyvinyl Chloride	0.035 in (0.89 mm)	0.280 in (7.11 mm)

Overall Cable Diameter (Nominal)	0.280 in (7.11 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Nom. Velocity of Prop.	Max. Current
Pair(s)	24 Ohm/1000ft (79 Ohm/km)	13 pF/ft (43 pF/m)	22 pF/ft (72 pF/m)	100 Ohm	78%	1.8 Amps per Conductor at 25ºC

UL Voltage Rating
300 V (CM), 30 V (UL AWM 2919)

Operating
-20°C to +80°C

Stationary Min.	Installation Min.
2.8 in (71 mm)	2.8 in (71 mm)

Max. Pull Tension	44 lbs (20 kg)
Bulk Cable Weight	33 lbs/1000ft (49 kg/km)

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire	UL1685 UL Loading, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2919
CEC / C(UL) Compliance	CM
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight.

Update and Revision	Revision Number: 0.330 Revision Date: 04-26-2022

Part Numbers

Item #	Color	UPC
1421A 0601000	Chrome	612825115007
1421A 060500	Chrome	612825115014
1421A 0605000	Chrome	612825115021
