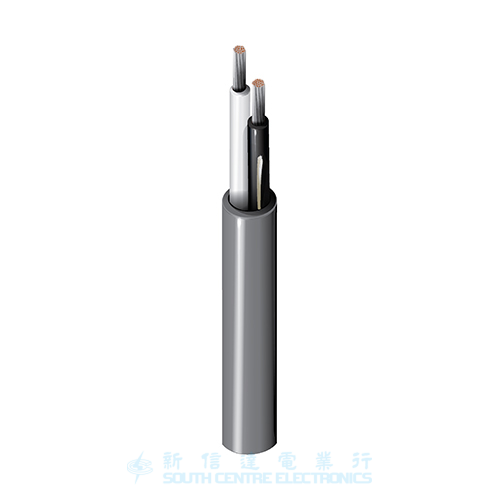

Product Overview
Construction Details
CONDUCTOR
INSULATION
OUTER JACKET
Electrical Characteristics
ELECTRICALS
VOLTAGE
Mechanical Characteristics
TEMPERATURE
BEND RADIUS
Standards and Compliance
History
Part Numbers
Suitable Applications | low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
---|
Element | Number of Element | Size | Stranding | Material |
---|---|---|---|---|
Pair(s) | 1 | 16 AWG | 19×29 | TC – Tinned Copper |
Element | Material | Nom. Thickness | Color Code |
---|---|---|---|
Pair(s) | PVC – Polyvinyl Chloride | 0.023 in (0.58 mm) | Black & White |
Material | Nom. Thickness | Nom. Diameter |
---|---|---|
PVC – Polyvinyl Chloride | 0.032 in (0.81 mm) | 0.274 in (6.96 mm) |
Overall Cable Diameter (Nominal) | 0.274 in (6.96 mm) |
---|
Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
---|---|---|---|
Pair(s) | 4.49 Ohm/1000ft (14.7 Ohm/km) | 33 pF/ft (110 pF/m) | 6.1 Amps per Conductor at 25ºC |
UL Voltage Rating |
---|
300 V (CMG), 300 V (UL AWM 2598) |
UL Temperature | Operating |
---|---|
60°C (UL AWM 2598) | -20°C to +80°C |
Stationary Min. | Installation Min. |
---|---|
2.7 in (69 mm) | 2.7 in (69 mm) |
Max. Pull Tension | 61 lbs (28 kg) |
---|---|
Bulk Cable Weight | 38 lbs/1000ft (57 kg/km) |
Environmental Suitability | Indoor |
---|---|
Sustainability | CA Prop 65 |
Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4, IEC 60332-1-2 |
CPR Compliance | CPR Euroclass: Eca |
NEC / UL Compliance | Article 725, Article 800, CMG, CL3 |
AWM Compliance | AWM 2598 |
CEC / C(UL) Compliance | CMG |
European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
Update and Revision | Revision Number: 0.357 Revision Date: 04-08-2022 |
---|
Item # | Color | Putup Type | Length | UPC/EAN |
---|---|---|---|---|
8471.00U152 | Chrome | UnReel | 152 m | 8719605018229 |
8471.01152 | Chrome | Reel | 152 m | 8719605018243 |
8471.00305 | Chrome | Reel | 305 m | 8719605018212 |
8471.00U305 | Chrome | UnReel | 305 m | 8719605018236 |
