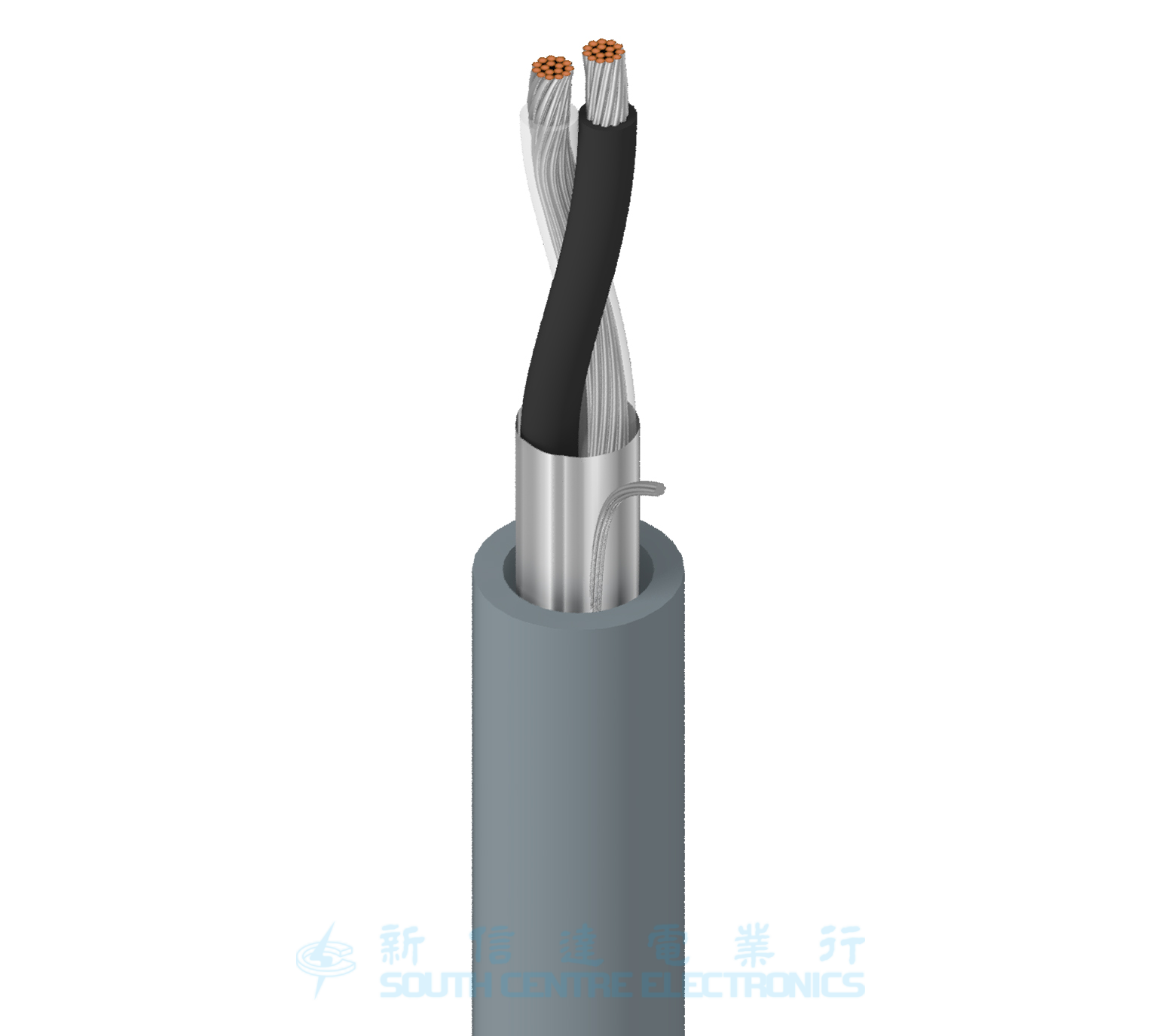

BELDEN 8761 2芯屏蔽雙絞線

Electronic, 2 C #22 Str TC, PE Ins, OS, PVC Jkt, CM

Suitable Applications	low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Element	Number of Element	Size	Stranding	Material
Pair(s)	1	22 AWG	7×30	TC – Tinned Copper

Element	Material	Nom. Thickness	Color Code
Pair(s)	PE – Polyethylene	0.017 in (0.43 mm)	Black, Clear

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (7×30) TC

Material	Nom. Thickness	Nom. Diameter
PVC – Polyvinyl Chloride	0.025 in (0.64 mm)	0.175 in (4.45 mm)

Overall Cable Diameter (Nominal)	0.175 in (4.45 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Max. Current
Pair(s)	16 Ohm/1000ft (52 Ohm/km)	24 pF/ft (79 pF/m)	47 pF/ft (150 pF/m)	64 Ohm	2.9 Amps per Conductor at 25ºC

UL Voltage Rating
300 V (CM), 300 V (UL AWM 2092))

UL Temperature	Operating
60°C (UL AWM 2092)	-20°C to +60°C

Stationary Min.	Installation Min.
1.8 in (46 mm)	1.8 in (46 mm)

Max. Pull Tension	27 lbs (12 kg)
Bulk Cable Weight	16 lbs/1000ft (24 kg/km)

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL1685 UL Loading, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2092
CEC / C(UL) Compliance	CM
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
Plenum Number	88761, 87761, 82761

Update and Revision	Revision Number: 0.380 Revision Date: 04-08-2022

Part Numbers

Item #	Color	Putup Type	Length	UPC/EAN
8761.00U152	Chrome	UnReel	152 m	8719605018946
8761.01152	Chrome	Reel	152 m	8719605018960
8761.00U305	Chrome	UnReel	305 m	8719605018953
8761.01305	Chrome	Reel	305 m	8719605018977
