Specification
| Main | |
| product or component type | Switch |
| device application | Control |
| load type | DC |
| colour tint | Wood |
| Complementary | |
| device presentation | Complete product |
| rated current | 3 A at 24 V DC |

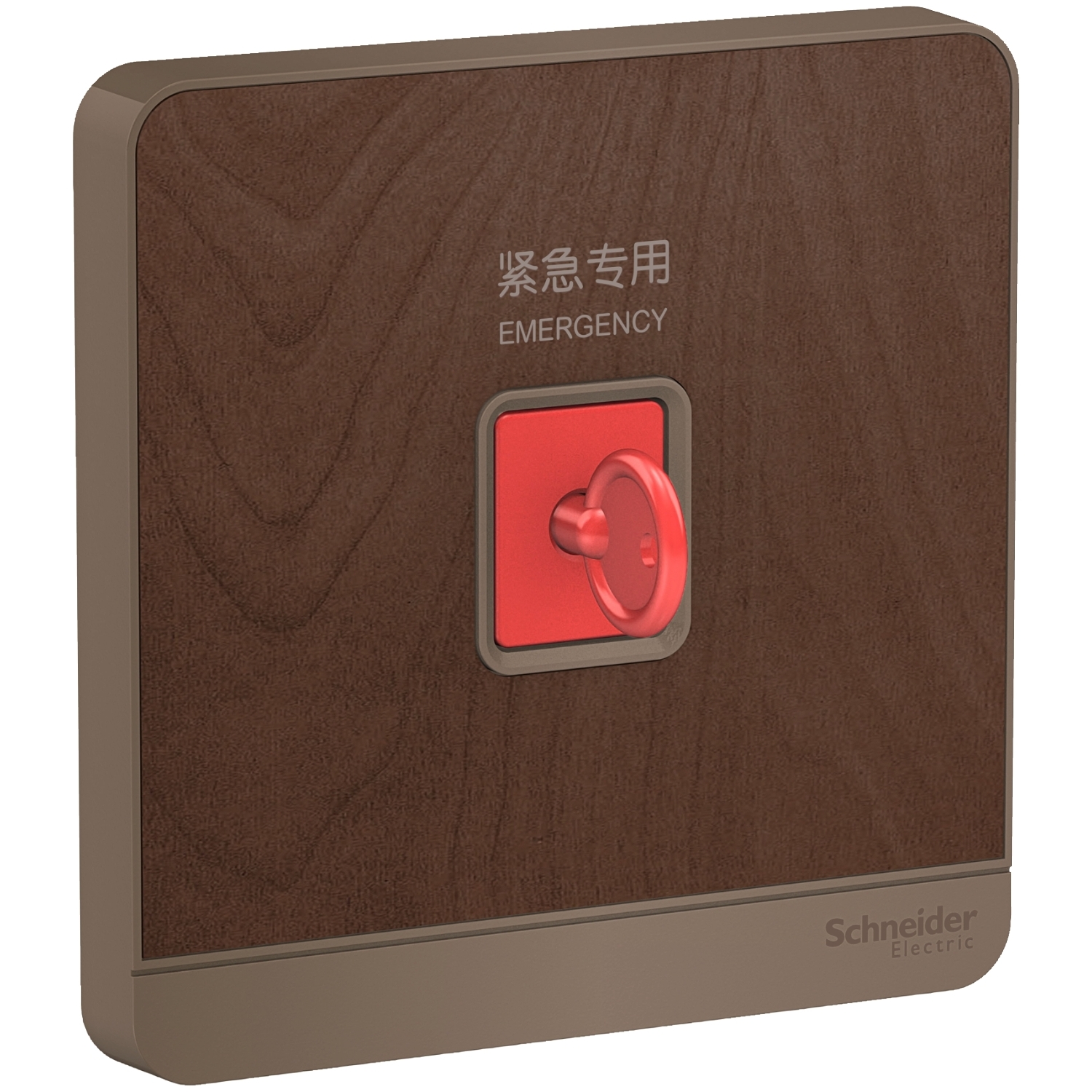

| switch application | Panic button |
| number of gangs | 1 gang |
| number of rocker | 1 |
| clamping connection capacity | 1 x 1.5 mm² for solid cable(s) |
| 1 x 1.5 mm² for stranded cable(s) | |
| connections – terminals | Terminal block |
| material | Polycarbonate: grid plate |
| Polycarbonate: surround | |
| Polycarbonate: button | |
| device mounting | Flush |
| Surface | |
| width | 86 mm |
| height | 86 mm |
| depth | 33.6 mm |
| Environment | |
| IP degree of protection | IP20 |
| maximum ambient air temperature for operation | 45 °C |
| operating altitude | 2000 m |
| relative humidity | 0…95 % |
| environmental characteristic | UV resistant |
| standards | IEC 60670 |
| BS 5733 | |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 63.0 g |
| Package 1 Height | 3.4 cm |
| Package 1 width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 557.0 g |
| Package 2 Height | 9.5 cm |
| Package 2 width | 19 cm |
| Package 2 Length | 19.5 cm |
