Name: UNI-T多功能電氣測試議UT526
SKU: 25000041
Price: 1980.00 澳門幣
Availability: InStock

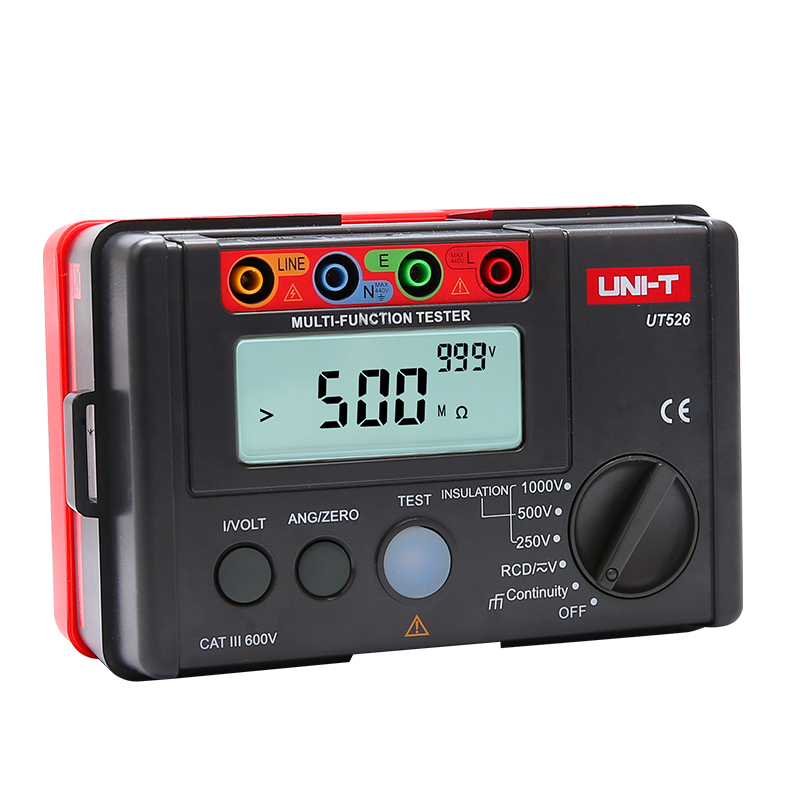

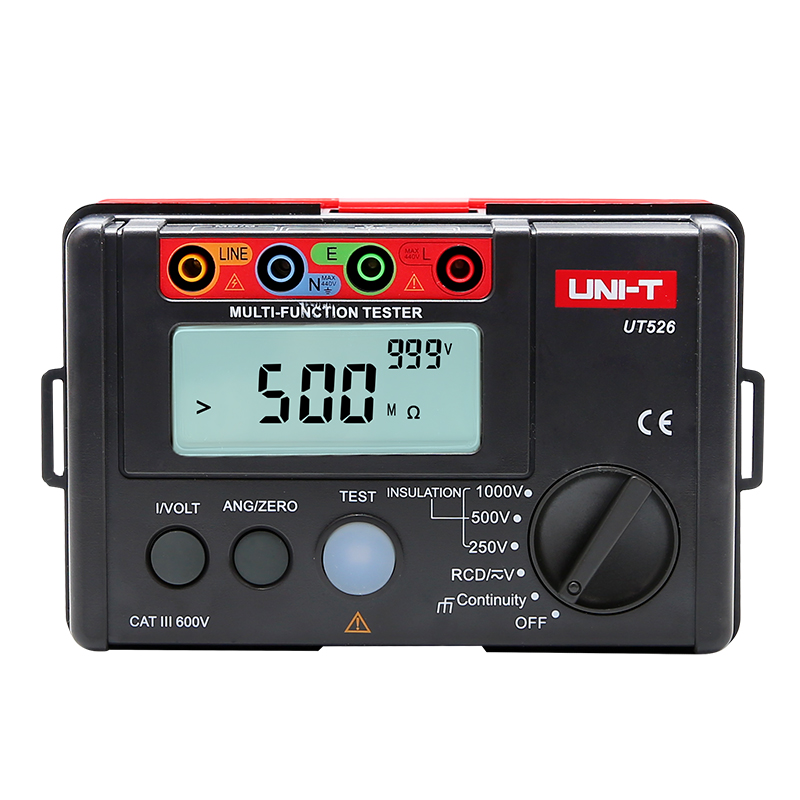

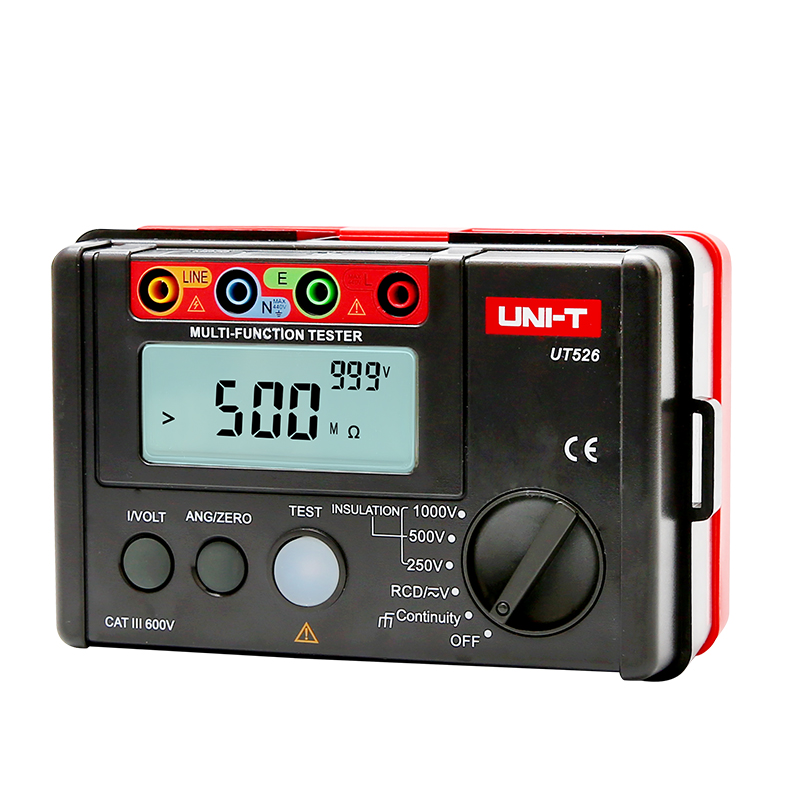

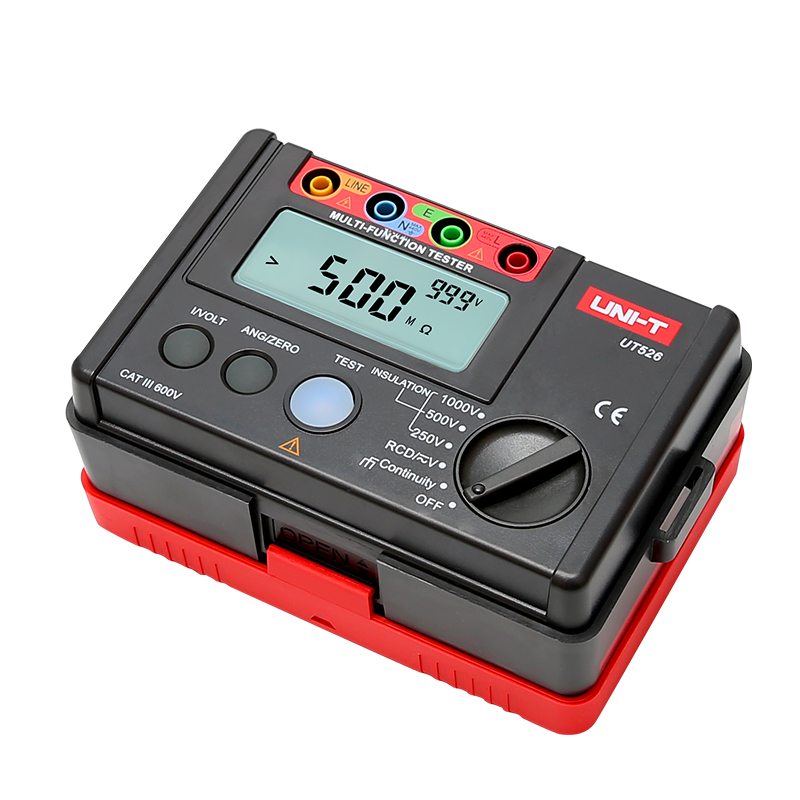

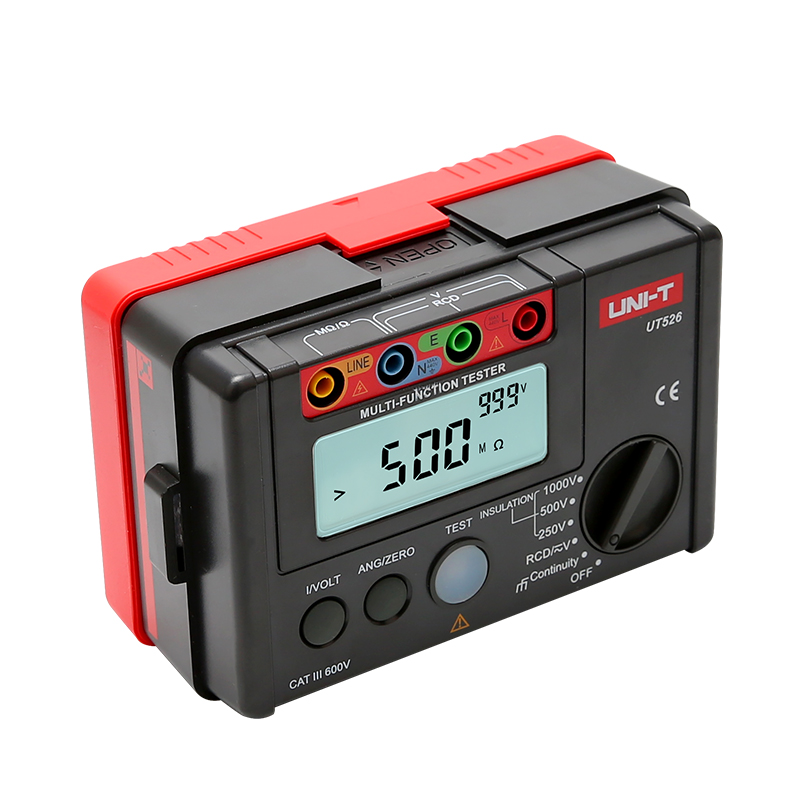

UNI-T多功能電氣測試議UT526

UT526 is a multifunctional electrical installation tester.
It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements.
UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.

Specifications

Insulation resistance (Ω)	Test voltages	250V/500V/1000V	±10%
	250V	0.05MΩ~200MΩ	±(5%+5)
	500V	0.05MΩ~300MΩ	±(5%+5)
	1000V	0.05MΩ~500MΩ	±(5%+5)
	Load current	250V (R=250kΩ) 1mA	±10%
		500V (R=500kΩ) 1mA	±10%
		1000V (R=1MΩ) 1mA	±10%
	Short circuit current	<2mA	√
RCD	Operating voltage (Freq.)	220V (45Hz~65Hz)	±10%
	Test current	10mA/30mA/100mA/300mA	0~20%
	Trip time	0ms~2000ms, 1Δn general (10mA)	±(5%+2)
		0ms~500ms, 1Δn general
		0ms~300ms, 1Δn general (100mA, 300mA)
Low resistance continuity	Range	0Ω~2000Ω	±(2%+5)
	Test voltage	Around 5V	√
	Test current	>200mA (R<2Ω)	√
Voltage measurement (V)	DC voltage	0~440V	±(5%+2)
	AC voltage	0~440V	±(5%+2)
	Frequency (For reference only)		√
Features
Display count			10000
Manual range			√
Phase switch (RCD)	0°and 180°		√
Low battery indication			√
Auto AC/DC voltage identification			√
Red warning lights			√
General Characterisitics
Power	1.5V battery (LR6) x 6
Display	71mm x 34mm
Product color	Red and grey
Product net weight	380g
Product size	160mm x 100mm x 71mm
Standard accessories	Batteries, carrying bag, gallus, test leads, alligator clips, test line
Standard individual packing	Gift box, English manual
Standard quantity per carton	10pcs
Standard carton measurement	445mm x 440mm x 180mm (0.063 CBM per standard carton)
Standard carton gross weight	12.8kg

送貨地區

送貨方式

1.配送上門

運費

出貨時間

配送詳情

貨號: 25000041 分類: 電工儀器儀錶標籤: UNI-T

描述

Insulation resistance (Ω)	Test voltages	250V/500V/1000V	±10%
	250V	0.05MΩ~200MΩ	±(5%+5)
	500V	0.05MΩ~300MΩ	±(5%+5)
	1000V	0.05MΩ~500MΩ	±(5%+5)
	Load current	250V (R=250kΩ) 1mA	±10%
		500V (R=500kΩ) 1mA	±10%
		1000V (R=1MΩ) 1mA	±10%
	Short circuit current	<2mA	√
RCD	Operating voltage (Freq.)	220V (45Hz~65Hz)	±10%
	Test current	10mA/30mA/100mA/300mA	0~20%
	Trip time	0ms~2000ms, 1Δn general (10mA)	±(5%+2)
		0ms~500ms, 1Δn general
		0ms~300ms, 1Δn general (100mA, 300mA)
Low resistance continuity	Range	0Ω~2000Ω	±(2%+5)
	Test voltage	Around 5V	√
	Test current	>200mA (R<2Ω)	√
Voltage measurement (V)	DC voltage	0~440V	±(5%+2)
	AC voltage	0~440V	±(5%+2)
	Frequency (For reference only)		√
Features
Display count			10000
Manual range			√
Phase switch (RCD)	0°and 180°		√
Low battery indication			√
Auto AC/DC voltage identification			√
Red warning lights			√
General Characterisitics
Power	1.5V battery (LR6) x 6
Display	71mm x 34mm
Product color	Red and grey
Product net weight	380g
Product size	160mm x 100mm x 71mm
Standard accessories	Batteries, carrying bag, gallus, test leads, alligator clips, test line
Standard individual packing	Gift box, English manual
Standard quantity per carton	10pcs
Standard carton measurement	445mm x 440mm x 180mm (0.063 CBM per standard carton)
Standard carton gross weight	12.8kg

Shipping & Delivery

9999-count LCD display with analogue bar
250V~1000V DC insulation resistance test
200mA earth-resistance continuity test
Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test
Lock test
RCD trip time test and the data storage with one key
Full/Half wave and count downing (30s) test mode selectable
0°/180° phase angle option to detect the fastest trigger time
Trip current test of RCD trip time X2
RCD trip trigger current test
Phase sequence and missing test
AC/DC voltage auto check and test
Connection check with status real-time display
White backlight; auto power off

Maximum voltage between any Terminals and Grounding: 300V rms or 300DCV
Maximum Display: 3999. (3 3/4 digits)
Mesaurement Speed: Updates 3 times/second.
Operating Temperature: 00C~400C(320F~1040F), Relative Humidity: 75
Storage Temperature: -100C~500C( 140F~1220F).
Altitude: Operating: 2000m; Storage: 10000m.
Battery Type: 3V button battery (CR2032).
Battery Deficiency: At around < 2.4, VDisplay “ ”.
Data Holding: Display “ ”
Negative reading: Display “ “
Overloading: Display “OL”.
Dimensions (HxWxL): 108x58x12mm.
Weight: Approx.125g (battery and test lead included).
Safety/Compliances: IEC61010 CAT II 300V overvoltage and double insulation standard.
