UNI-T尋線器UT-682

598.00

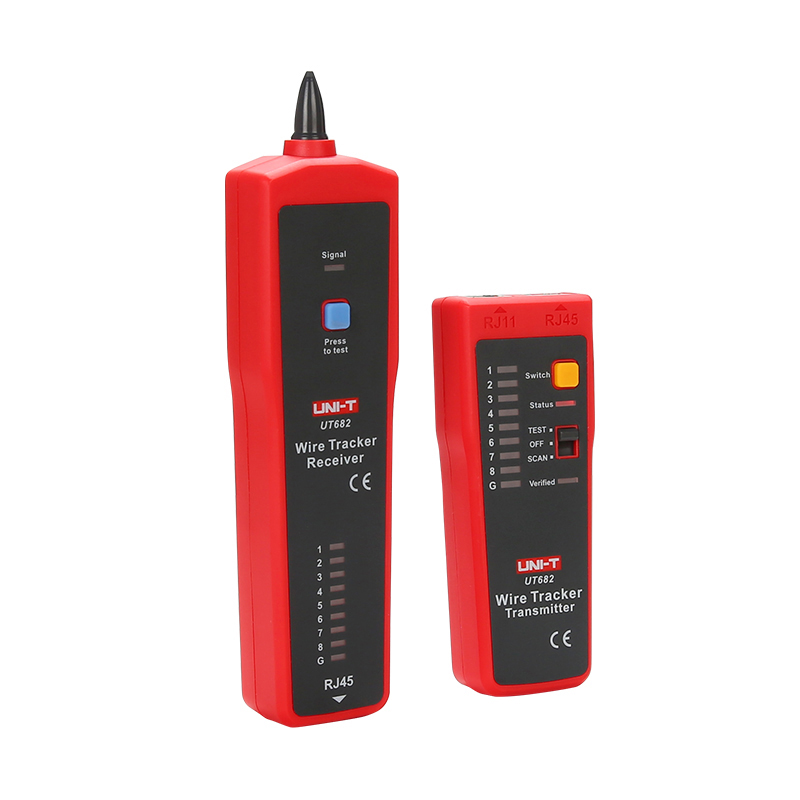

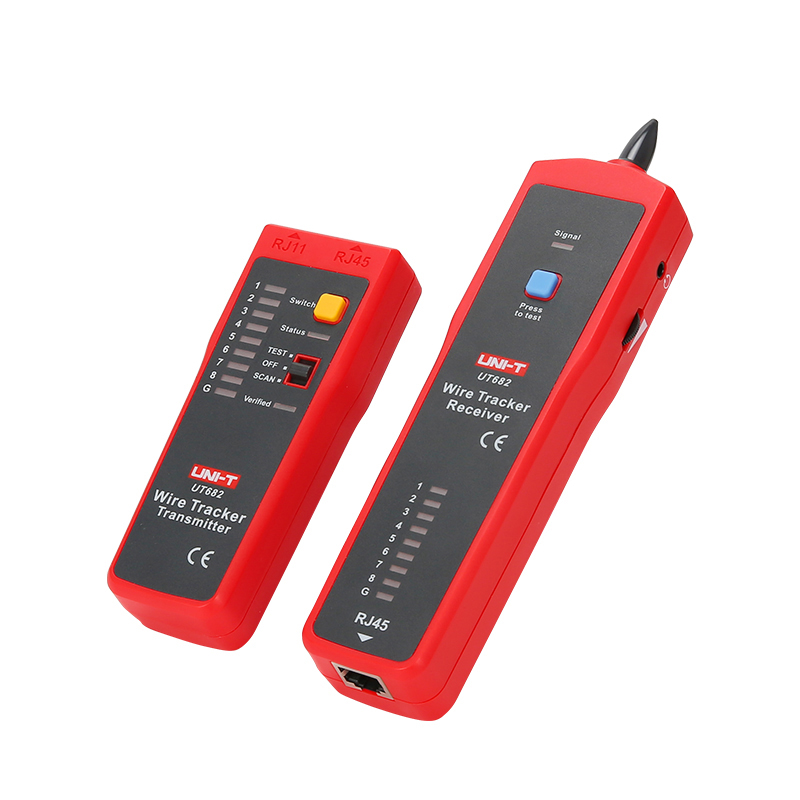

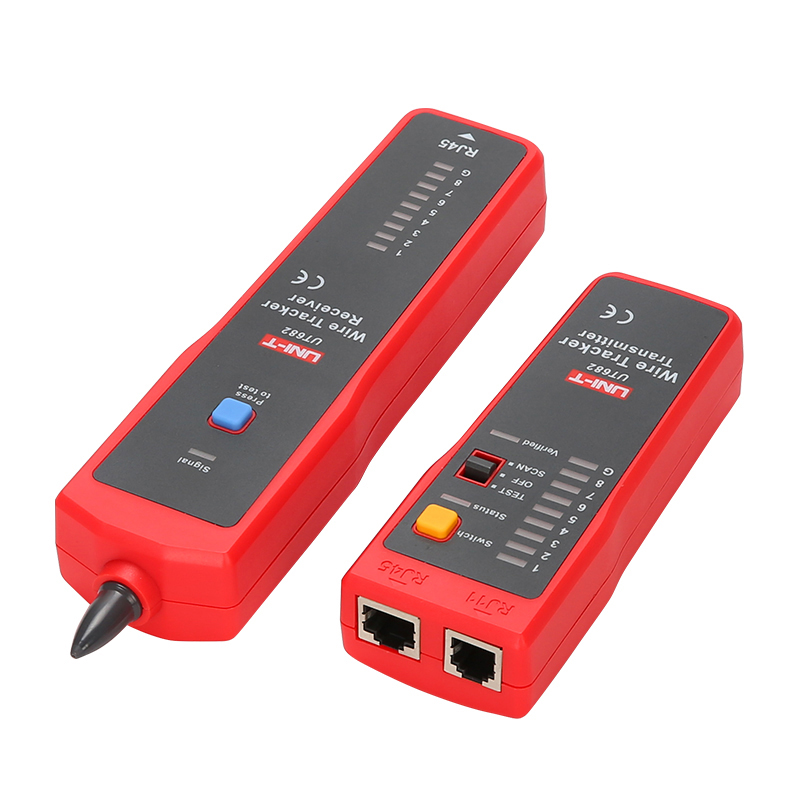

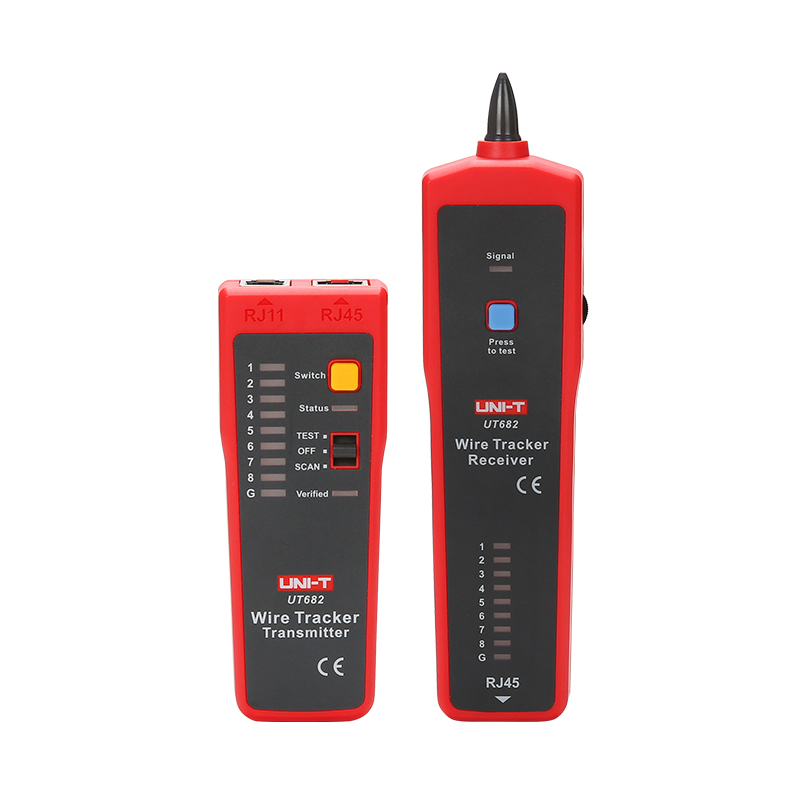

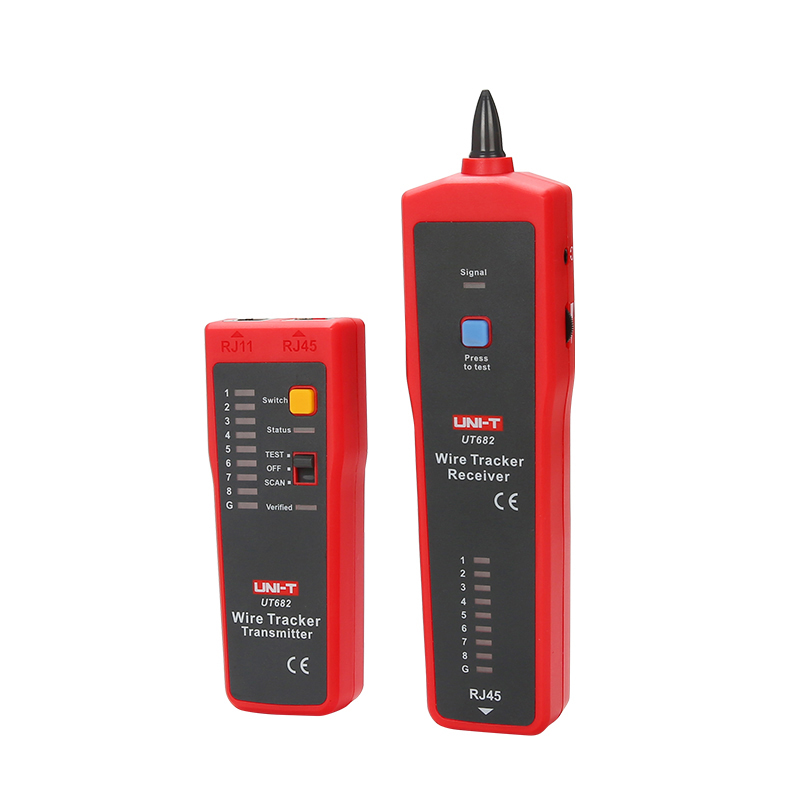

  • UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation.
  • UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
Compare
Add to wishlist
貨號: 25000021 分類: 電工儀器儀錶 標籤: UNI-T
Share:
  • 描述
  • Shipping & Delivery
描述

Specifications

Wire tracking features Wire types LAN cabletelephone linecoaxial cableelectric wire
Indication light for signal strength √
Live switchboard wire tracing √
Switchboard wire tracing distance ≥100m
Telephone lines tracking distance ≥3000m
Unshielded cables tracking distance ≥320m
Shielded cables tracking distance ≥320m
Open and short circuit test √
Polarity indication for
telelphone lines
DCV function, range:
±(5V~52V)
√
Telephone lines and LAN cables distinction Jacks distinction √
Broken wire tracking √
Transmitter output voltage ≥12V peak-peak
Transmitter low battery indication 6.6V±0.5V
Transmitter power supply 9V battery √
Max transmitter working current 25mA
Headphone jack for receiver √
Receiver power supply 9V battery √
Max receiver standby current ~10mA √
Max receiver operating current <40mA (AC, RMS) √
Wire alignment Line sequence measurement 9 LEDs (LED1~LED8, LED_G) √
Line sequence measuring speed Fast and slow selectable √
LAN cable: shielded/unshielded indication √
Transmitter  input
voltage protection
52V DC
Operating environment Operating temperature: 0~40℃; Storage temperature: -10~50℃
Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characterisitics
Product color Red and grey
Product net weight Transmitter-125g, receiver-153g
Product size Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm
Standard accessories 9V battery x 2, RJ11 cable, RJ45 cable, RJ11 cable with alligator clips
Standard individual packing Blister, carrying bag, English manual
Standard quantity per carton 24pcs
Standard carton measurement 575mm x 310mm x 430mm
Standard carton gross weight 12.3kg
