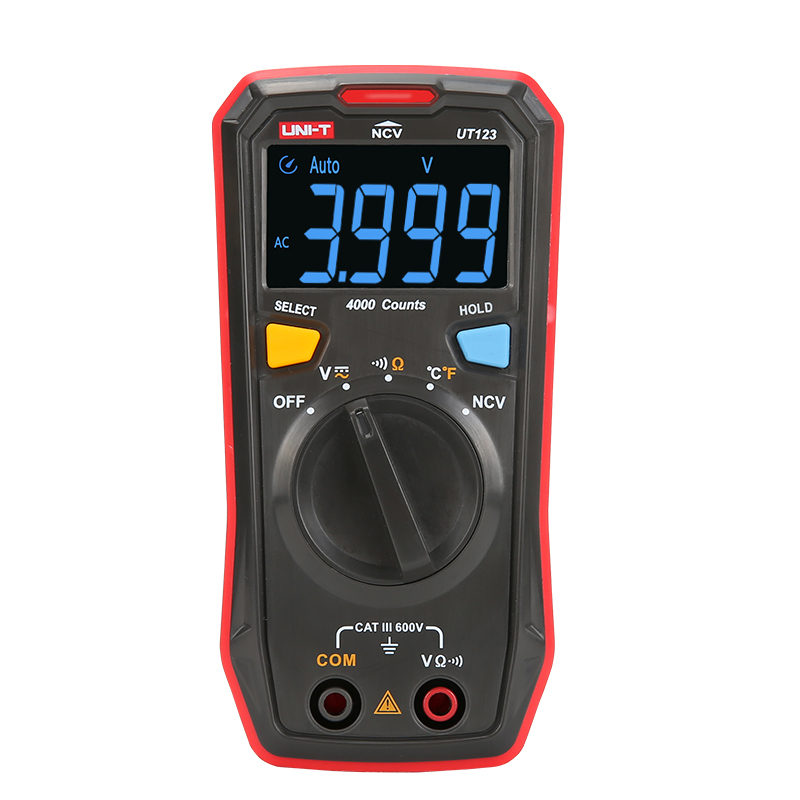

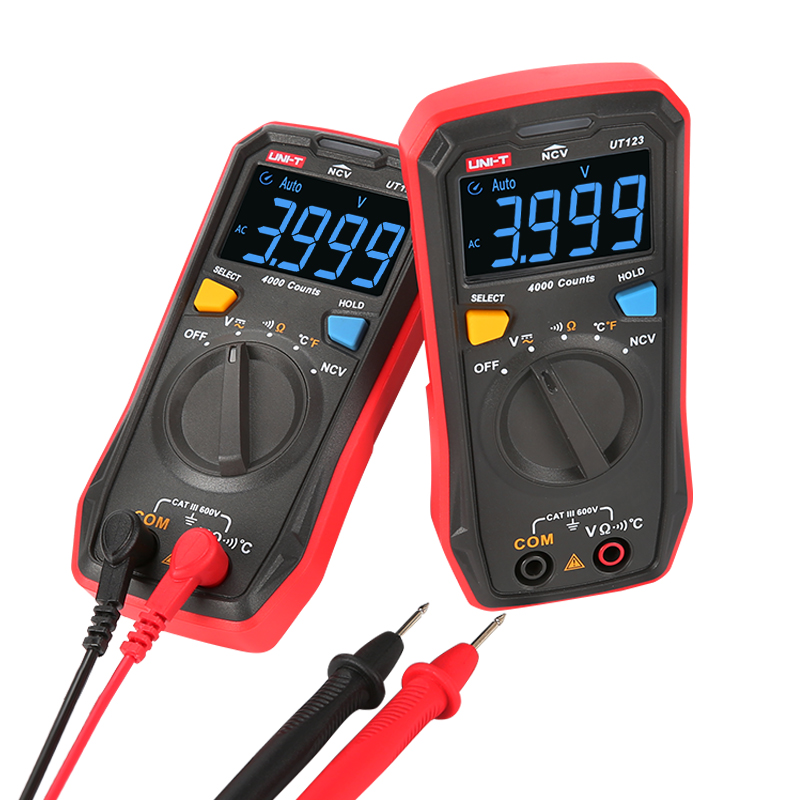

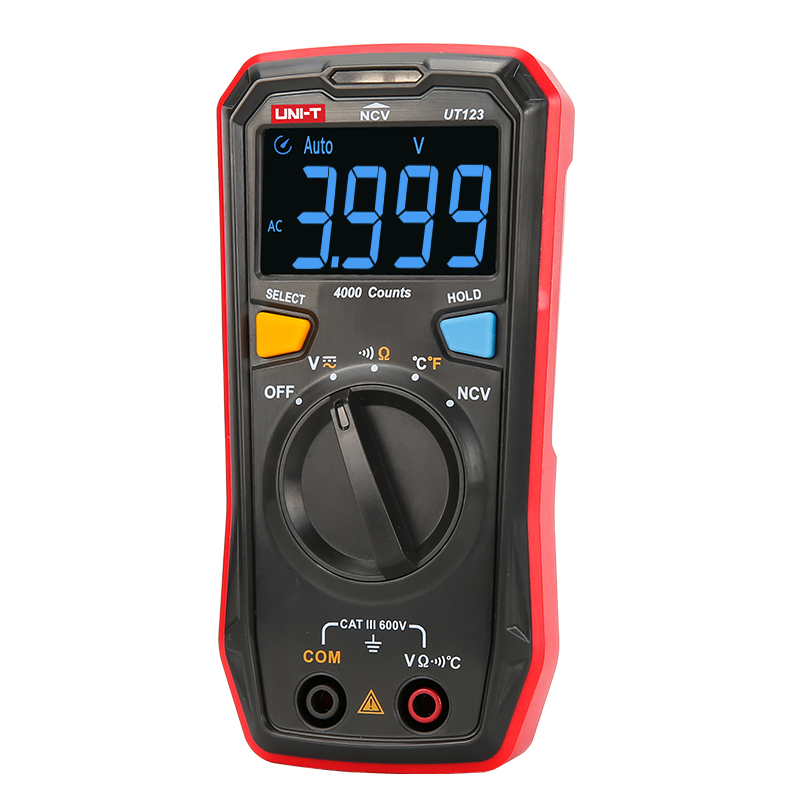

UNI-T數字萬用表UT123

  • The UT123 is a pocket-sized residential multimeter designed for home use.
  • The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.
  • NCV voltage values above are tested at contact distance (0cm) from the test object, it is used for reference only.
  • When meter is at some distance away from test object, NCV indication light may change to the weaker voltage color
獲取報價
Compare
Add to wishlist
貨號: 25000013 分類: 標籤:
描述

Specifications

DC Voltage 4V/40V/400V/600V ±（0.5%＋2）
AC Voltage 4V/40V/400V/600V ±(1.0%+3)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ ±(0.8%+2)
Temperatue –40℃～ 300℃/–40℉～ 572℉ ±4℃
Features
Display Count 4000
Autol Range √
NCV √
Continuity Test √
Acousto-optic indication(NCV/continuity/battery power) √
Low Battery Indication ≤2.7V √
Data Hold √
Auto  Power Off 15Min √
Operation Temperature 0℃～40℃
Safety CAT III 600V
General Characteristics
Power 1.5V battery (R03) x 2
Display 44mm × 26mm
Product color Red and grey
Product net weight 130g
Product size 130mm x 65m x 28mm
Standard accessories Batteries,  Thermocouple
Standard individual packing Gift Box, Manual
Standard quantity per carton 60pcs
Standard carton measurement 480mm x 340mm x 325mm
Standard carton gross weight 15.5kg
