Name: UNI-T數字萬用表UT890D
SKU: 25000007
Price: 198.00 澳門幣
Availability: InStock

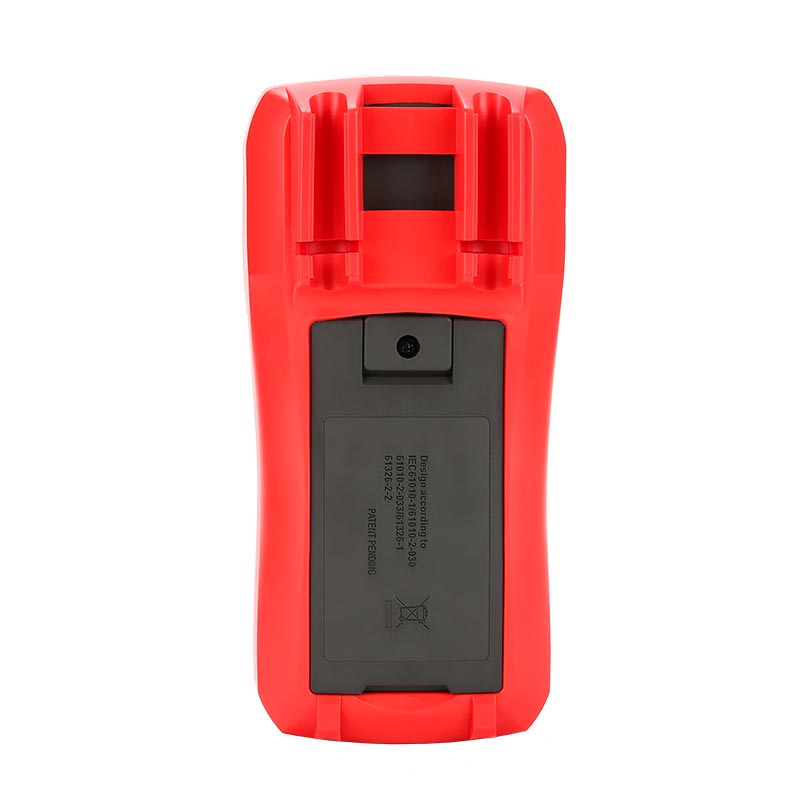

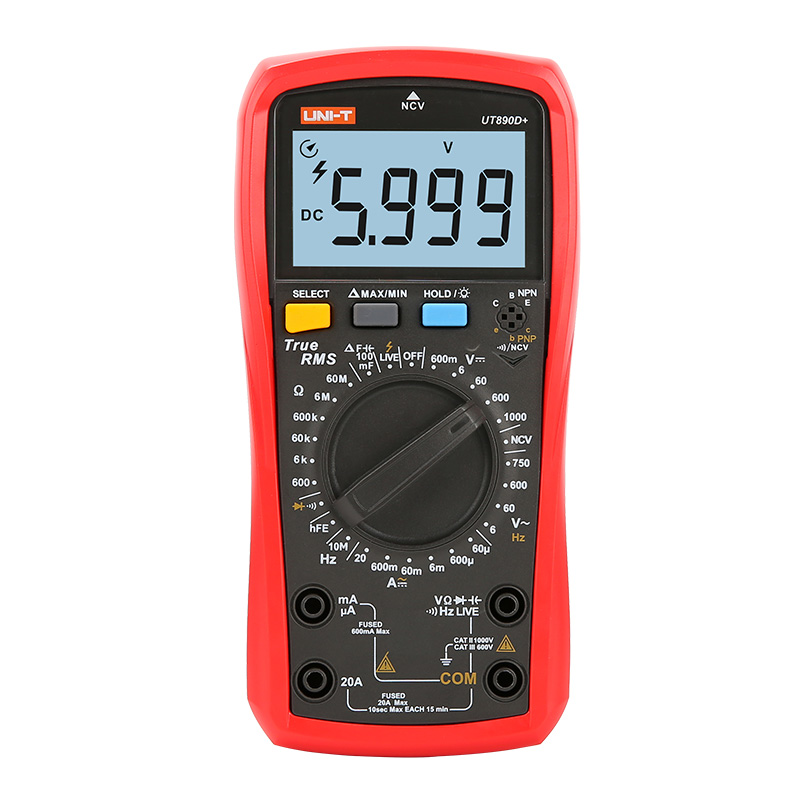

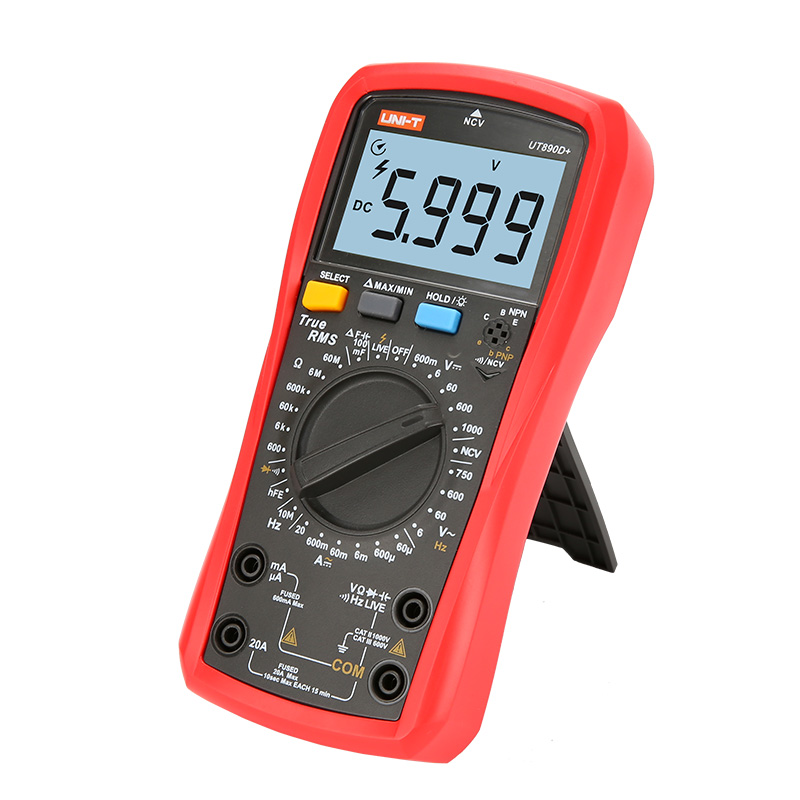

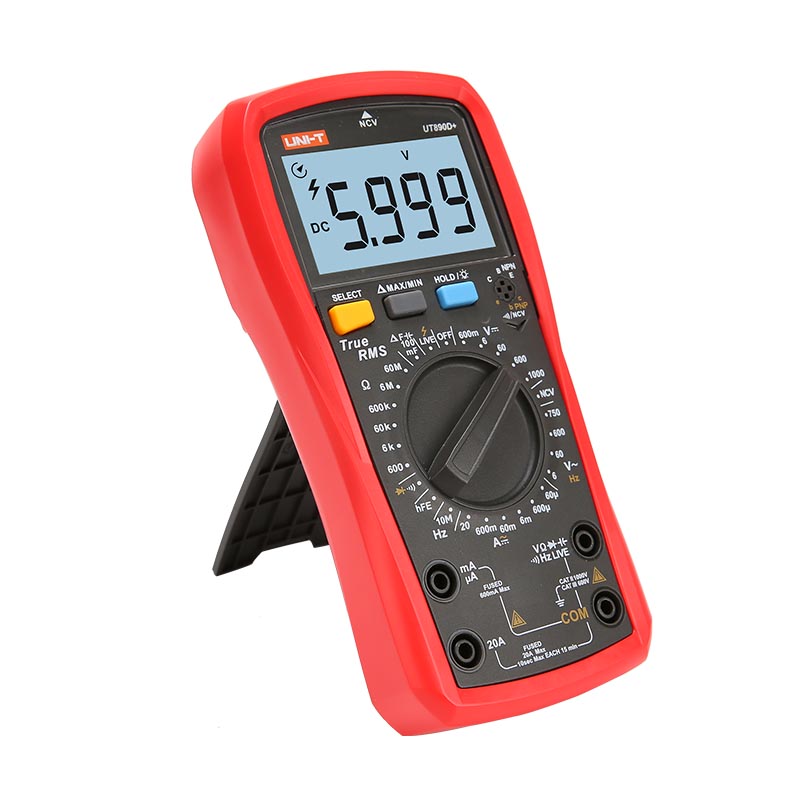

UNI-T數字萬用表UT890D

The UT890C/D+ 6000-count true RMS digital multimeters are designed with large LCD display.
The maximum measurable capacitance is 100mF, with fast response time of less than 12s.
The NCV and continuity measurement have acousto-optic indications.
UT890D+ has a LIVE function for distinguishing between live and neutral wires.
In addition, it is equipped with the automatic fuse blown detection and high voltage protection.

Specifications

DC Voltage	600mV/6V/60V/600V/1000V	±(0.5%+2)
AC Voltage	6V/60V/600V/750V	±(0.8%+3)
ACV Frequency	10Hz～10kHz	±（0.1%+5)
DC Current	60uA//600uA/6mA/60mA/600mA/20A	±(0.8%+8)
AC Current	60uA/600uA/6mA/60mA/600mA/20A	±(1%+12)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Capacitor	6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF	±(3%+10)
Frequency	9.999Hz～9.999MHz	±(1.0%+5)
Fetures
Display Count		6000
Manual Range		√
NCV		√
hFE		√
Diode Test		√
Continuity Test		√
Live		√
True RMS		√
Fuse blowing alarm		√
Acousto-optic indication(NCV/continuity)		√
High voltage false detection	1000Vrms	√
Current (AC/DC) mode memory		√
Over-current alarm	≥20A	√
Low Battery Indication	≤2.5V	√
Data Hold		√
REL		√
Max/Min	V 、A	√
Auto Power Off	15Min	√
Back light	30s	√
Operation Temperature	0℃～40℃
Safety	CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power	1.5V x 2
Product color	Red and Gray
Product Net Weight	346g
Product Size	183mm x 88mm x 56mm
Standard Individual Packing	Gift Box, Manual
Standard Quantity Per Carton	40pcs
Standard carton measurement	690mm x 450mm x 340mm
Standard carton gross weight	23Kg

送貨地區

送貨方式

1.配送上門

運費

出貨時間

配送詳情

貨號: 25000007 分類: 電工儀器儀錶標籤: UNI-T

描述

DC Voltage	600mV/6V/60V/600V/1000V	±(0.5%+2)
AC Voltage	6V/60V/600V/750V	±(0.8%+3)
ACV Frequency	10Hz～10kHz	±（0.1%+5)
DC Current	60uA//600uA/6mA/60mA/600mA/20A	±(0.8%+8)
AC Current	60uA/600uA/6mA/60mA/600mA/20A	±(1%+12)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Capacitor	6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF	±(3%+10)
Frequency	9.999Hz～9.999MHz	±(1.0%+5)
Fetures
Display Count		6000
Manual Range		√
NCV		√
hFE		√
Diode Test		√
Continuity Test		√
Live		√
True RMS		√
Fuse blowing alarm		√
Acousto-optic indication(NCV/continuity)		√
High voltage false detection	1000Vrms	√
Current (AC/DC) mode memory		√
Over-current alarm	≥20A	√
Low Battery Indication	≤2.5V	√
Data Hold		√
REL		√
Max/Min	V 、A	√
Auto Power Off	15Min	√
Back light	30s	√
Operation Temperature	0℃～40℃
Safety	CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power	1.5V x 2
Product color	Red and Gray
Product Net Weight	346g
Product Size	183mm x 88mm x 56mm
Standard Individual Packing	Gift Box, Manual
Standard Quantity Per Carton	40pcs
Standard carton measurement	690mm x 450mm x 340mm
Standard carton gross weight	23Kg
