首頁 儀器儀錶 電工儀器儀錶 UNI-T電容電阻交直流叉型數顯鉗型表UT256B
UNI-T鉗形萬用表UT-201+
Back to products
UNI-T絕緣電阻測試儀UT-501A

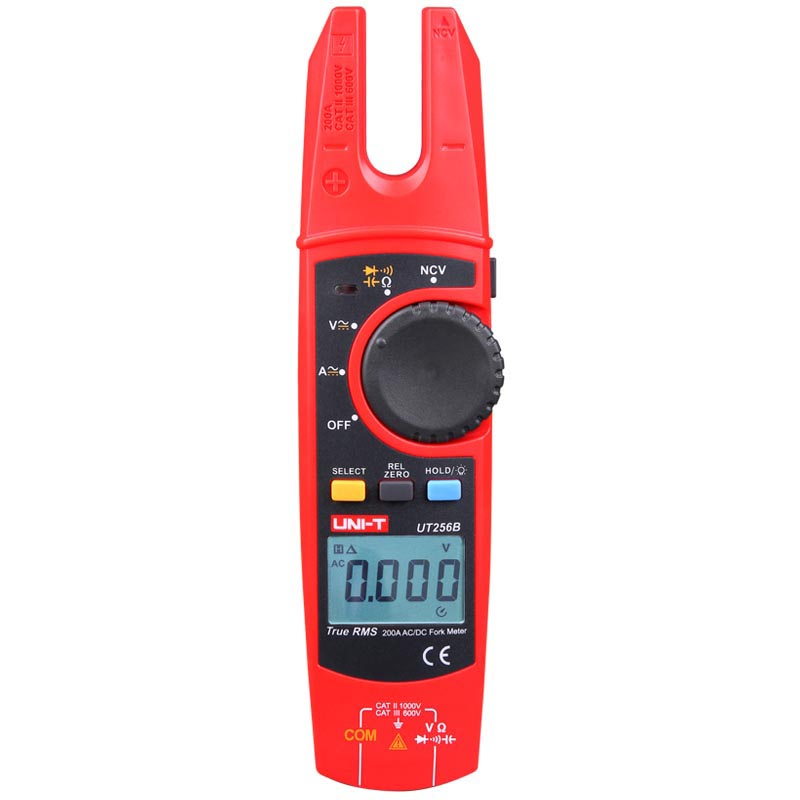

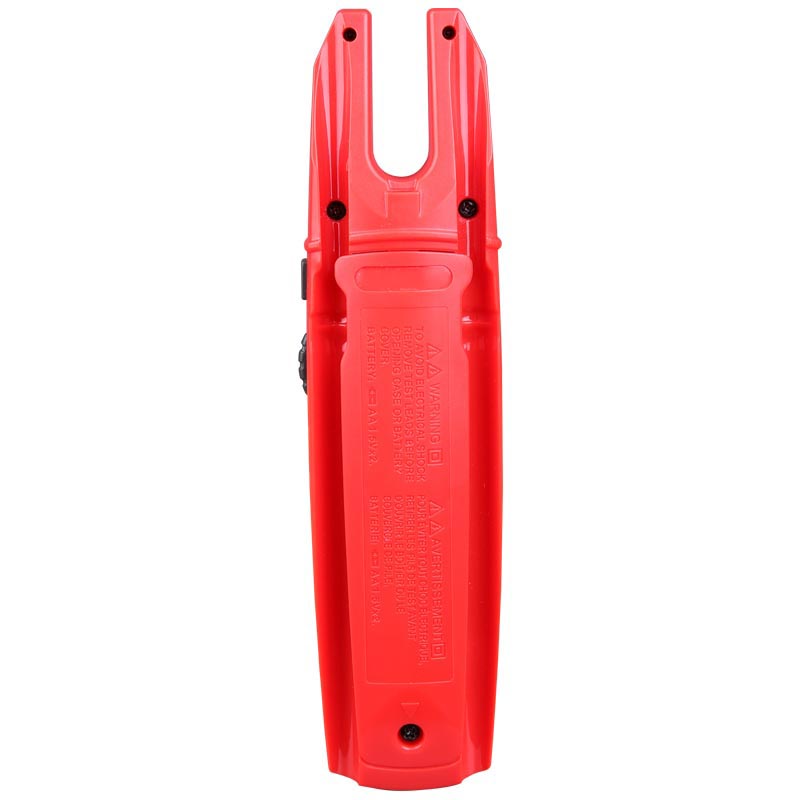

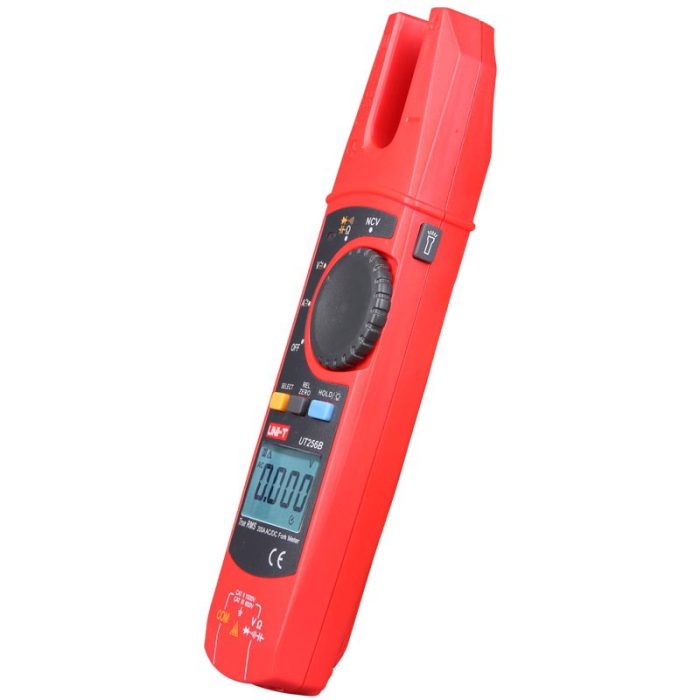

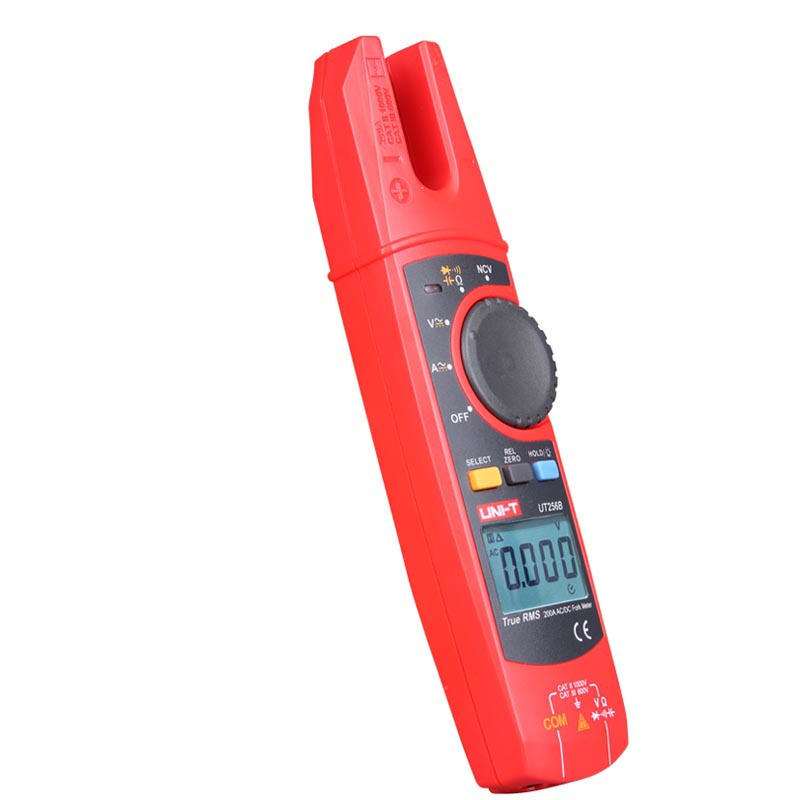

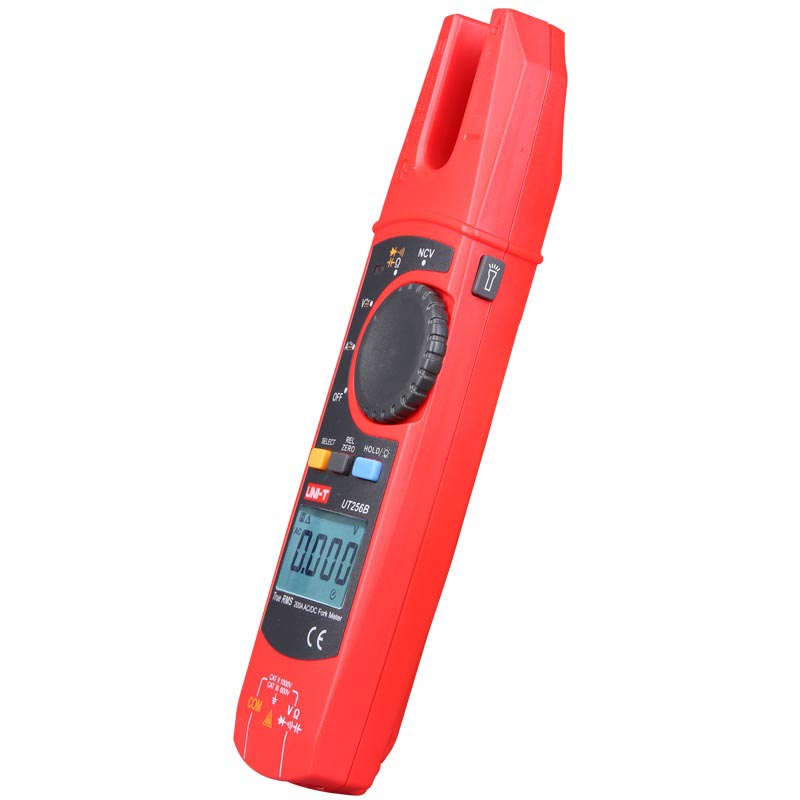

UNI-T電容電阻交直流叉型數顯鉗型表UT256B

  • Auto range
  • True RMS
  • Data hold
  • Auto power off
  • Continuity buzzer
  • Low battery indication: ≤2.4V
  • Input protection
  • LCD backlight
獲取報價 loading
Compare
Add to wishlist
貨號: 25000043 分類: 電工儀器儀錶 標籤: UNI-T
Share:
  • 描述
  • Shipping & Delivery
描述

Specifications

Certifications CE/RoHS/cETLus
Safety ratings CAT II 1000V, CAT III 600V
AC current (A) 200A ±(2.5%+5)
DC current (A) 200A ±(2.5%+5)
AC voltage (V) 750V ±(1.2%+3)
DC voltage (V) 1000V ±(0.8%+3)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(4%+20)
Display count 6000
Diode test About 3V √
NCV √
Zero mode √
Relative mode √
General Characterisitics
Power 1.5V battery (LR6) x 2
Display  36.5mm x 24mm
Product net weight 248g
Product size 210mm x 53mm x 35mm
Standard accessories Batteries, test leads, English manual
Standard individual packing Gift box, carrying bag
Standard quantity per carton 20pcs
Standard carton measurement 485mm x 310mm x 205mm
Standard carton gross weight 9.5kg
